Description

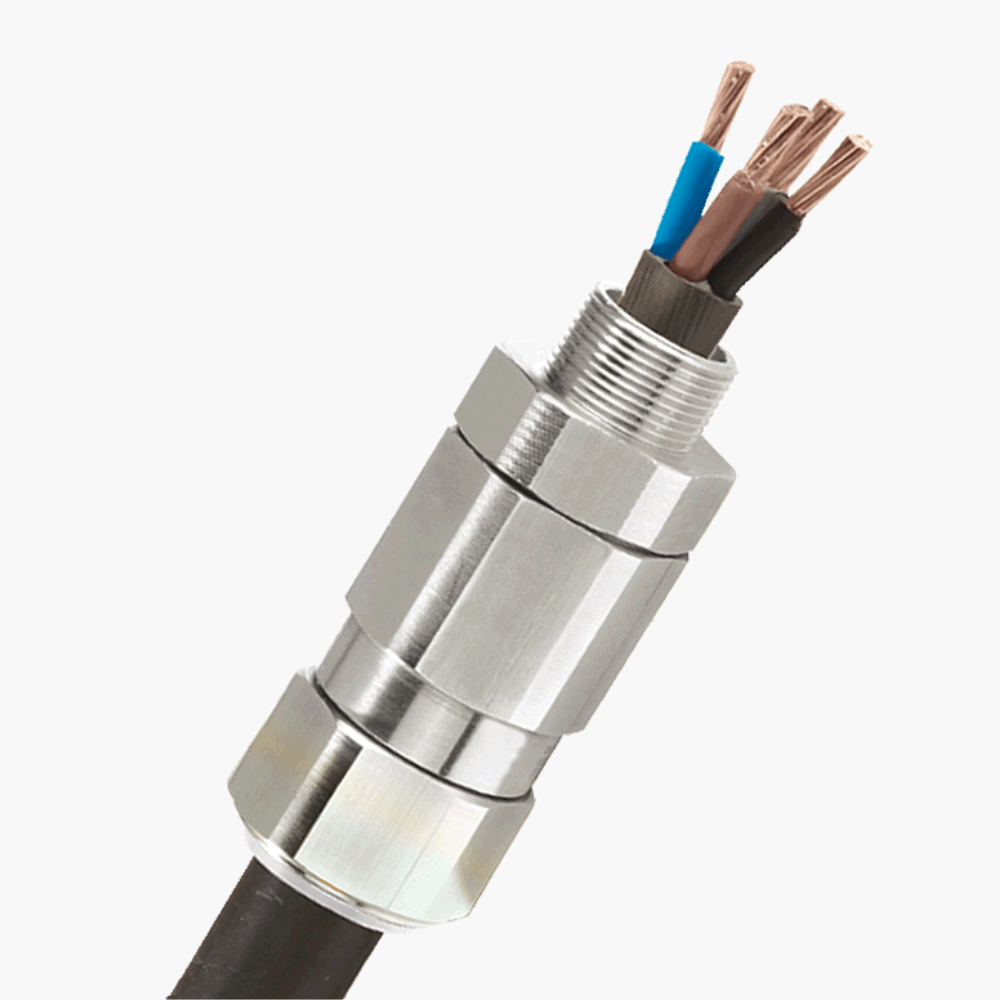

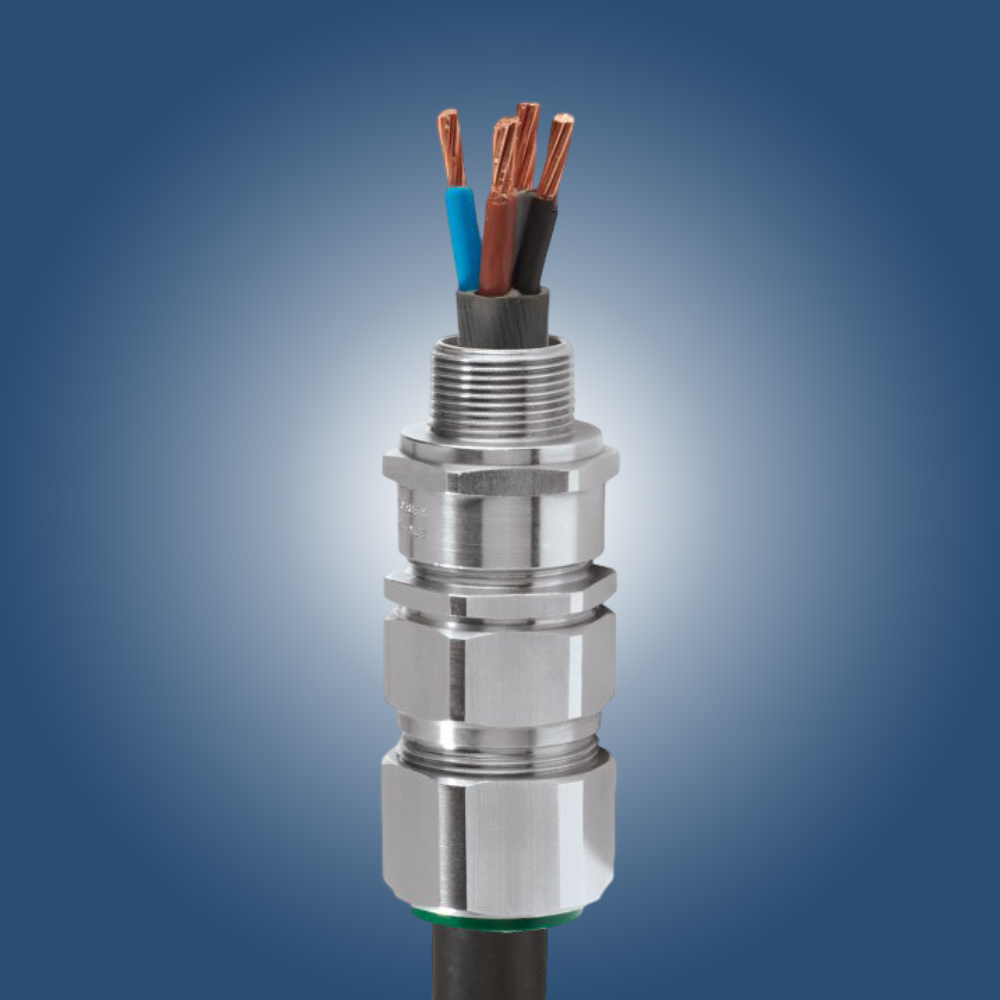

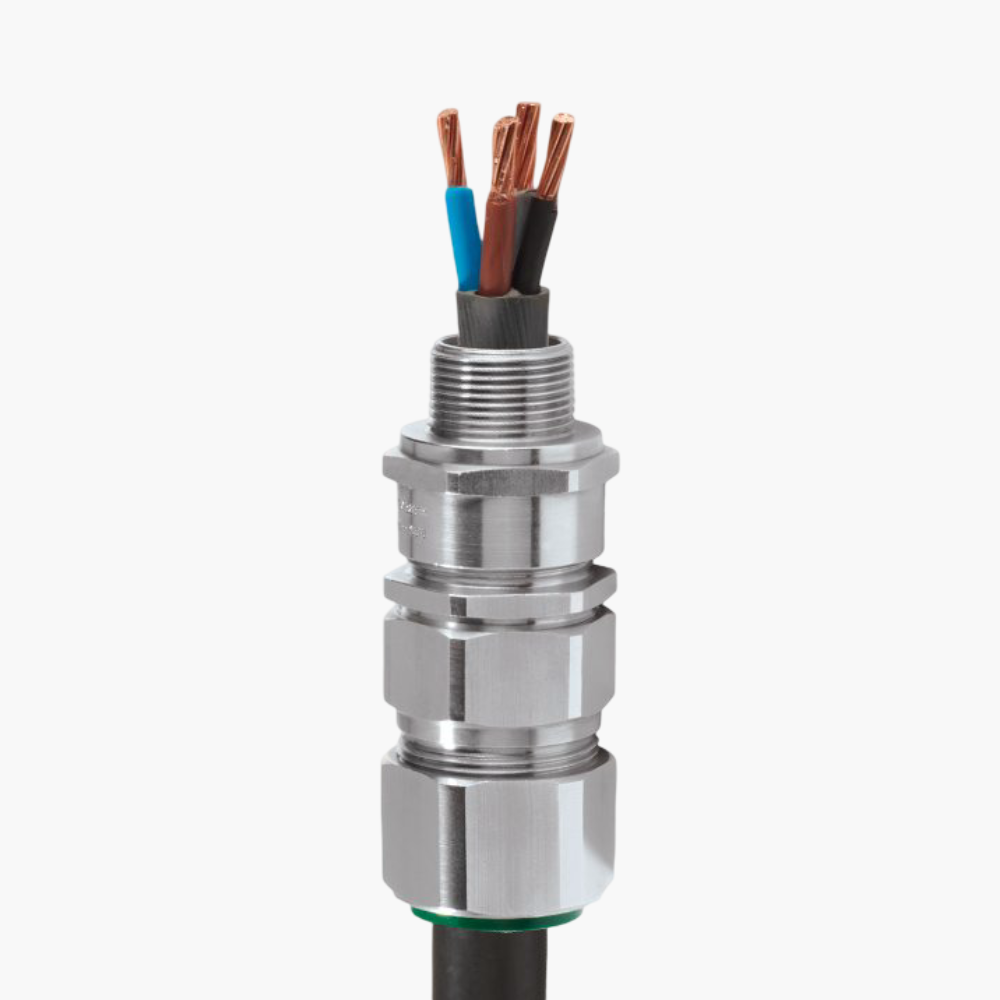

Flame Proof Cable Glands
Flame Proof Cable Glands are engineered for hazardous industrial environments where safe cable entry, secure sealing, and reliable explosion-proof protection are essential. These cable glands are designed for use with all types of armoured cables and are suitable for demanding industrial applications including Oil & Gas plants, Petrochemical facilities, Offshore platforms, Marine industries, Chemical plants, Power plants, and hazardous industrial environments.
Designed with robust metal-to-metal armour clamping technology, the Flame Proof Cable Glands provide strong mechanical cable retention and secure grounding performance. The advanced sealing system includes a displacement-type flameproof inner seal along with a controlled outer load retention seal for enhanced protection and long-term reliability.
These globally approved Flame Proof Cable Glands are certified for hazardous explosive atmospheres and comply with IECEx, ATEX, UKEX, cCSAus, and other international standards. The glands are designed to provide safe and secure cable termination in hazardous industrial areas where explosion-proof safety is critical.
The cable glands support direct and remote installation applications and are suitable for Single Wire Armour (SWA), Aluminium Wire Armour (AWA), Steel Tape Armour (STA), Wire Braid Armour, Aluminium Strip Armour (ASA), Pliable Wire Armour (PWA), screened flexible cables, and armoured jacketed cables.
Manufactured using high-quality materials including Brass, Nickel Plated Brass, and Copper-Free Aluminium, these Flame Proof Cable Glands offer excellent corrosion resistance and long service life in harsh industrial conditions. The sealing system uses halogen-free thermoset elastomer material for reliable environmental sealing and cable protection.
The cable glands are designed to reduce the effects of cold flow while maintaining strong armour clamping and secure cable sealing performance. The unique OSTG design helps prevent overtightening during installation, improving installation safety and long-term cable protection.
These Flame Proof Cable Glands offer superior EMC performance and are available with IP66 protection as standard, while IP67 and IP68 ingress protection options are also available for demanding industrial applications. The glands are tested for reliable operation in extreme temperature environments ranging from -60°C to +130°C.
The heavy-duty construction provides strong mechanical performance with high impact resistance and dependable enclosure protection for industrial applications operating in harsh environmental conditions.
These hazardous area cable glands are suitable for both indoor and outdoor installation applications where reliable flameproof cable termination and environmental protection are required. Their globally certified design makes them ideal for industrial safety systems operating in explosive atmospheres.
Key Features
• Flame Proof Cable Glands for hazardous areas
• Suitable for all types of armoured cables
• Metal-to-metal armour clamping
• Displacement-type flameproof inner seal
• Controlled outer load retention seal
• IECEx, ATEX & UKEX certified
• IP66 standard protection
• IP67 & IP68 protection available
• Superior EMC performance
• Brass, Nickel Plated Brass & Aluminium options
• Operating temperature: -60°C to +130°C
• Designed for hazardous industrial applications
Applications
• Oil & Gas Industries
• Offshore Platforms
• Petrochemical Plants
• Chemical Industries
• Marine Applications
• Power Plants
• Hazardous Industrial Areas
• Heavy Industrial Installations
QANDS Services provides reliable Flame Proof Cable Glands and hazardous area cable management solutions for industrial applications across India. Our solutions are designed to deliver safe, secure, and long-lasting cable protection for hazardous environments including Oil & Gas, Petrochemical, Offshore, Marine, Chemical, and heavy industrial sectors. We focus on quality, safety, and performance to meet the demanding requirements of modern industrial infrastructure and hazardous area installations.
Download Product Catalogue
Flame Proof Cable Glands Catalogue
