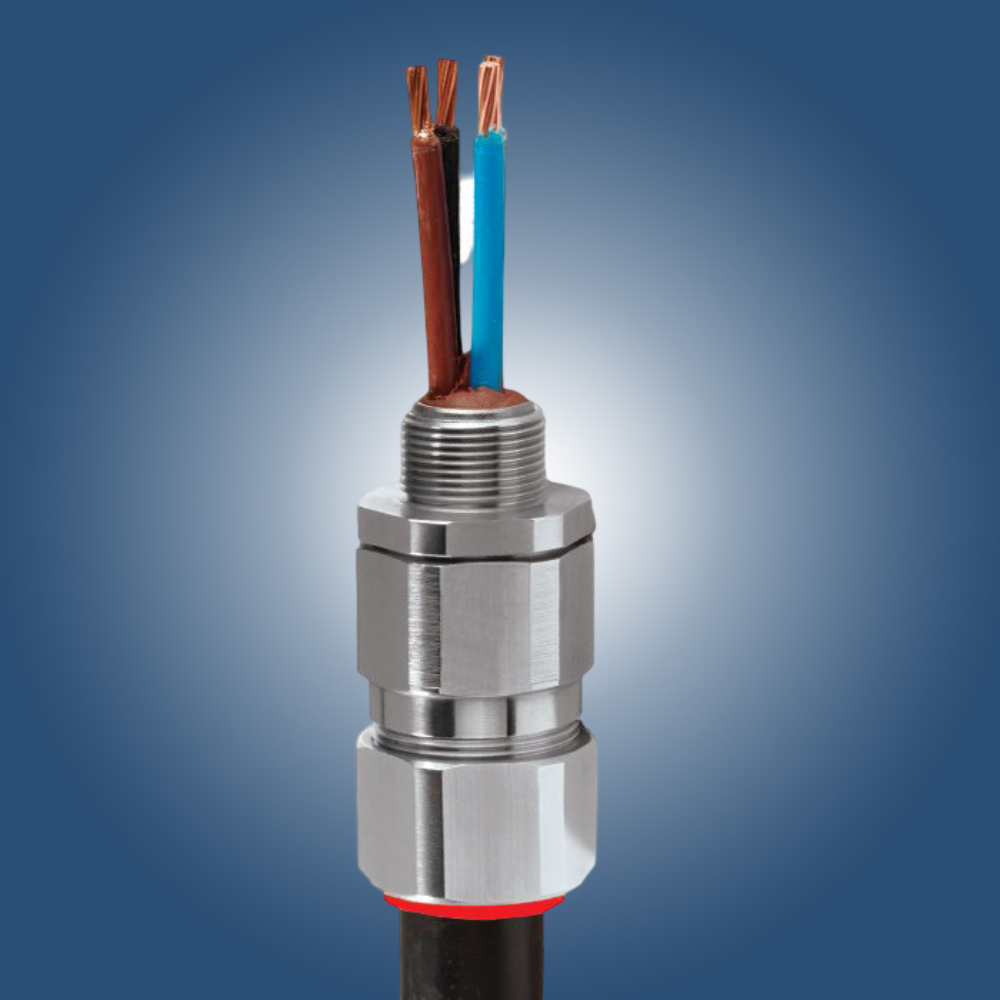

PX2KX/M Mining Barrier Cable Gland is a premium hazardous area cable gland engineered specifically for pliable wire armoured (PWA) cables used in underground mining and heavy industrial environments. Manufactured to meet international explosion protection standards, this cable gland combines metal-to-metal armour clamping with CMP’s advanced compound barrier sealing technology to provide maximum mechanical strength, flameproof protection, and long-term cable integrity.

Designed for both direct and remote installations, the PX2KX/M incorporates a controlled outer load retention seal and CMP’s Unique OSTG technology, which helps prevent overtightening during installation. Its excellent EMC performance, superior ingress protection (IP66/IP67/IP68), and resistance to extreme temperatures from -60°C to +85°C make it ideal for demanding mining, oil & gas, petrochemical, and hazardous industrial installations.

Available in Brass, Nickel Plated Brass, and Stainless Steel, the PX2KX/M offers dependable performance in corrosive and high-vibration environments while meeting ATEX, IECEx, and UKEX certification requirements for safe operation in explosive atmospheres.

Key Features

• Designed for Pliable Wire Armoured (PWA) Cables
• Mining Group I Explosion Proof Cable Gland
• Metal-to-Metal Armour Clamping
• Compound Barrier Flameproof Seal
• Controlled Outer Load Retention Seal
• Unique OSTG Prevents Overtightening
• Superior EMC Performance
• Ex db & Ex eb Certified
• IP66, IP67 & IP68 Ingress Protection
• ATEX, IECEx & UKEX Approved
• Brass, Nickel Plated Brass & Stainless Steel Options
• Operating Temperature: -60°C to +85°C
• High Mechanical Strength
• Corrosion Resistant Construction
• Suitable for Direct & Remote Installation
