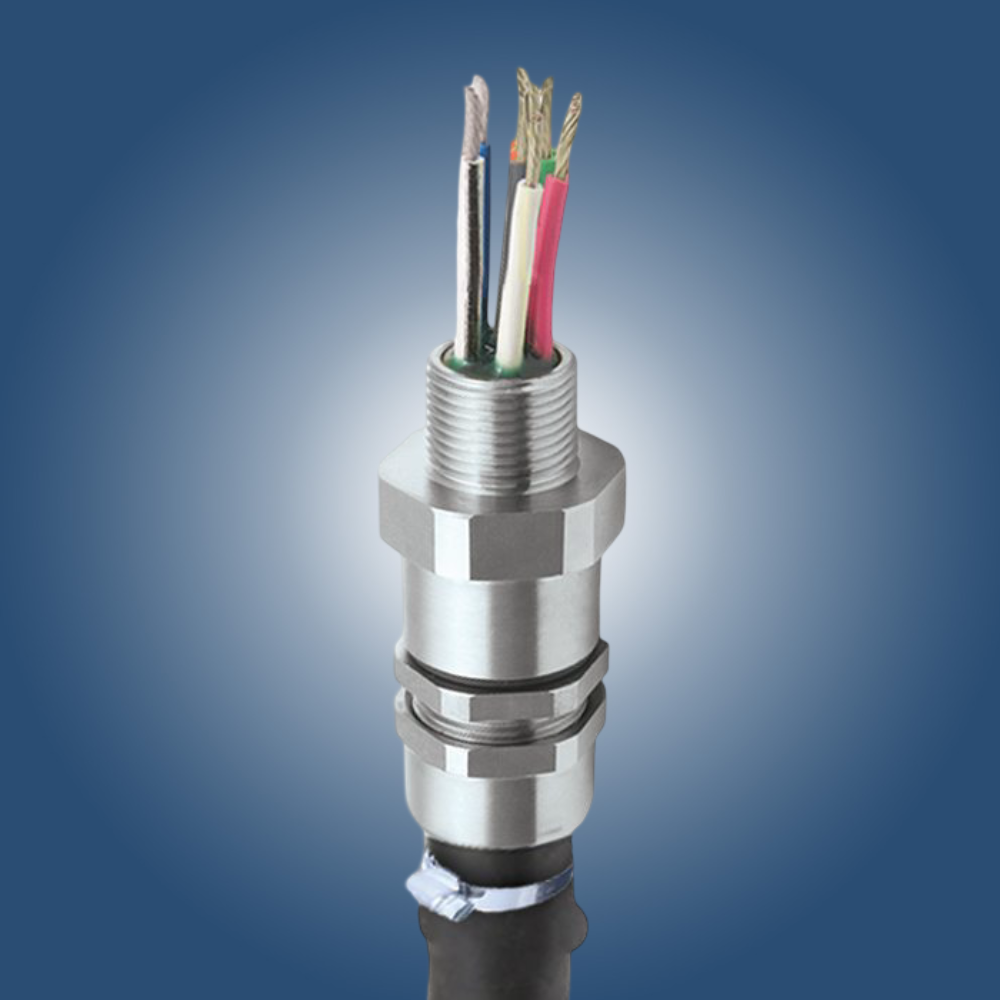

PXSS2KREXHC RapidEx Barrier Cable Gland is an advanced explosion-proof cable gland engineered for unarmoured and braided cables housed in flexible hose. Designed for hazardous industrial environments, it features CMP’s innovative RapidEx liquid barrier sealing technology, significantly reducing installation time while providing a secure flameproof seal around individual cable cores.

Built for superior performance, the PXSS2KREXHC combines an outer displacement seal with an inner RapidEx barrier resin seal, delivering exceptional protection against moisture, dust, chemicals, and explosive atmospheres. Its high cable retention capability, deluge protection, and durable construction ensure long-term reliability even in the most demanding industrial applications.

Manufactured in Brass, Electroless Nickel Plated Brass, 316 Stainless Steel, and Aluminium, this cable gland is globally certified to ATEX, IECEx, UKEX, PESO, EAC, and Marine standards. With IP66, IP67, and IP68 ingress protection, an operating temperature range of -60°C to +85°C, and suitability for both direct and remote installations, it is an ideal solution for oil & gas, petrochemical, marine, offshore, mining, and industrial automation projects requiring maximum safety and performance.

Key Features

• RapidEx Liquid Barrier Sealing Technology
• Explosion Proof Cable Gland for Hazardous Areas
• Suitable for Unarmoured & Braided Cables in Flexible Hose
• Ex db, Ex eb, Ex ta & Ex nR Certified
• ATEX, IECEx, UKEX & PESO Approved
• IP66, IP67 & IP68 Ingress Protection
• Deluge Protection Compliant
• Direct & Remote Installation
• Superior Cable Retention Performance
• Outer Displacement Seal & Inner RapidEx Barrier Seal
• Brass, Nickel Plated Brass, SS316 & Aluminium Options
• Operating Temperature: -60°C to +85°C
• Marine & Offshore Approved
• Fast Installation with Reduced Resin Pouring Time
