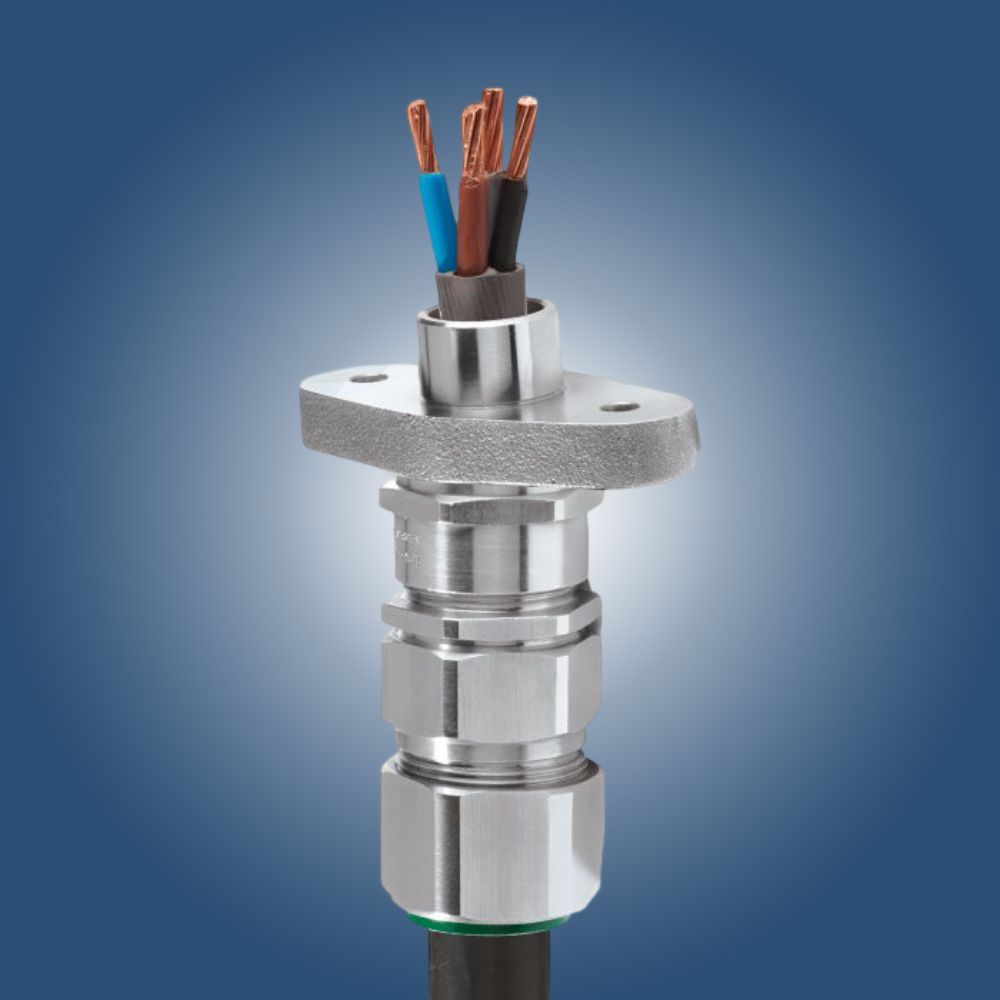

Explosion Proof Cable Gland is a high-performance hazardous area cable gland engineered specifically for Pliable Wire Armoured (PWA) cables used in mining, oil & gas, petrochemical, and other industrial applications. Designed with an integrated flanged adaptor, it provides secure flange mounting while ensuring maximum cable retention, mechanical strength, and reliable explosion protection.

Manufactured from premium Brass, Electroless Nickel Plated Brass, or 316 Stainless Steel, the E1FX/MF incorporates CMP’s advanced Inner Displacement Seal and Load Retention Seal (LRS) technology. Its metal-to-metal armour clamping system delivers superior mechanical performance, while the sequential three-step installation process reduces installation errors and ensures long-term reliability.

Certified to ATEX, IECEx, and UKEX standards for hazardous locations, the E1FX/MF cable gland provides Ex db I Mb protection, IP66 ingress protection, excellent EMC performance, and an operating temperature range of -60°C to +130°C. This makes it an ideal solution for demanding mining and industrial electrical installations where safety, durability, and compliance are essential.

Key Features

• Designed for Pliable Wire Armoured (PWA) Cables
• Integrated Flanged Adaptor Design
• Ex db Explosion Proof Protection
• ATEX, IECEx & UKEX Certified
• Mining Group I Approved
• CMP Inner Displacement Seal Technology
• Load Retention Seal (LRS)
• Metal-to-Metal Armour Clamping
• High EMC Performance
• IP66 Protection
• Operating Temperature: -60°C to +130°C
• Brass, Nickel Plated Brass & SS316 Options
• Three-Step Installation Process
• Prevents Over-Tightening with OSTG Technology
